Breda A.7 Reconnaissance Aircraft
The A.7 was a reconnaissance aircraft developed by the Italian firm Breda. The A.7LD model featured a braced monoplane design with a parasol wing, a two-seat cockpit, and fixed landing gear, making it a robust and suitable aircraft for its reconnaissance role.
Development and Production
Two initial prototypes were assembled, powered by 400 hp (298 kW) Lorraine-Dietrich engines. Following successful trials, these were succeeded by 12 serial production machines, designated A.7 Asso, which entered service with reconnaissance units of the Italian Air Force in 1929, marking its operational deployment.
Variants and Powerplant

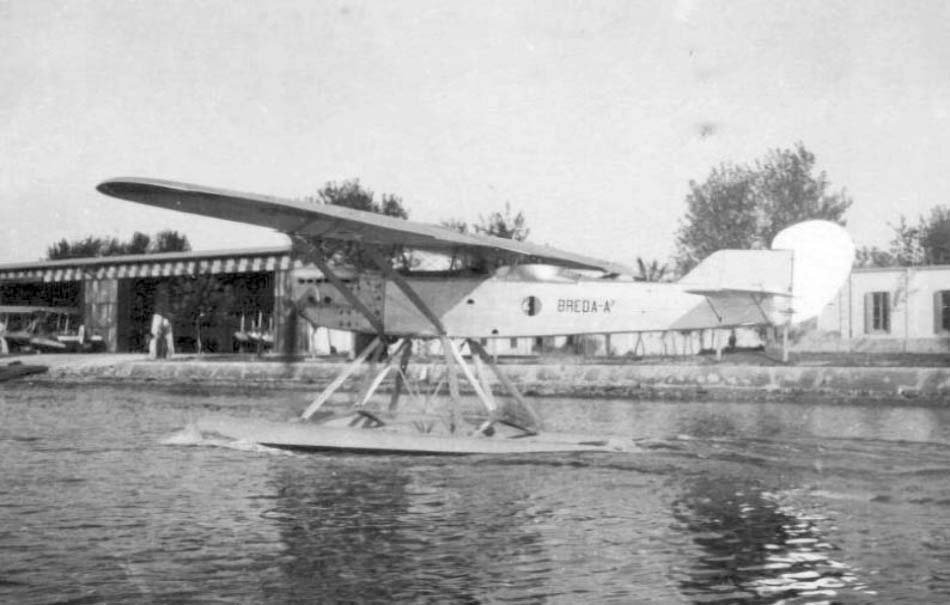

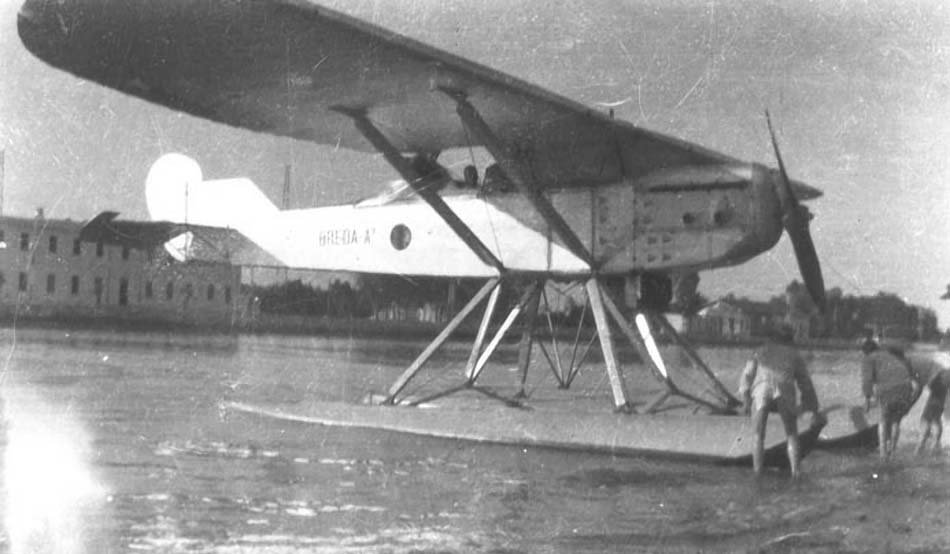

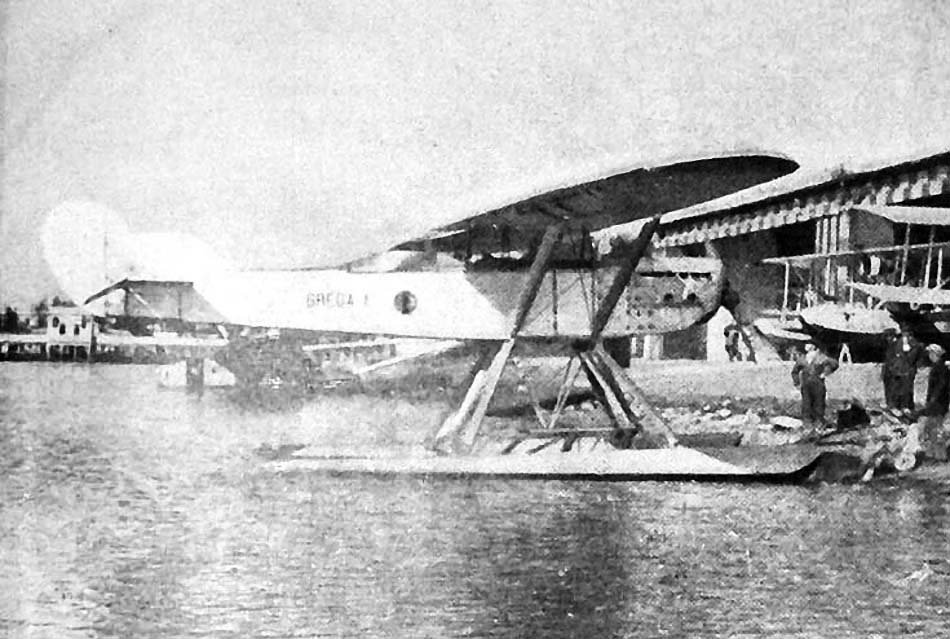

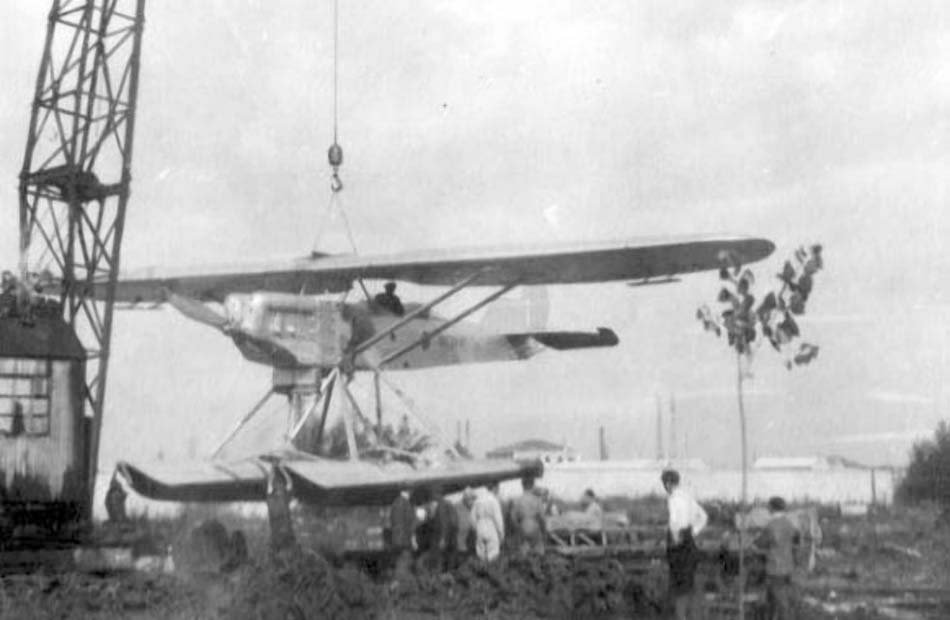

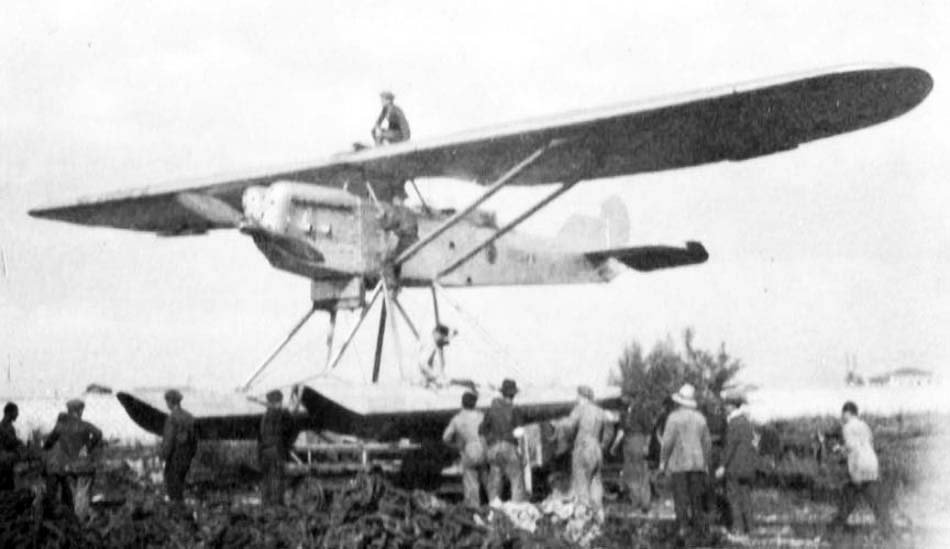

The serial production A.7 aircraft were fitted with Isotta-Fraschini Asso engines, enhancing their performance. This versatile aircraft was also produced in two main versions to meet different operational requirements: a land-based variant, equipped with wheels for airfield operations, and a naval version, adapted with floats for amphibious duties.
Technical Specifications
| Modification | A.7 Asso |
| Wingspan, m | 15.78 |
| Length, m | 10.52 |
| Height, m | 3.14 |
| Wing area, m2 | 43.00 |
| Empty weight | 1750 |
| Normal takeoff weight | 2650 |
| Engine type | 1 Piston engine Isotta-Fraschini Asso |
| Power, hp | 1 x 500 |
| Maximum speed, km/h | 245 |
| Cruising speed, km/h | 210 |
| Practical range, km | 1200 |
| Practical ceiling, m | 7500 |
| Crew | 2 |
| Armament | Movable 7.7-mm Lewis machine gun in the rear cockpit |

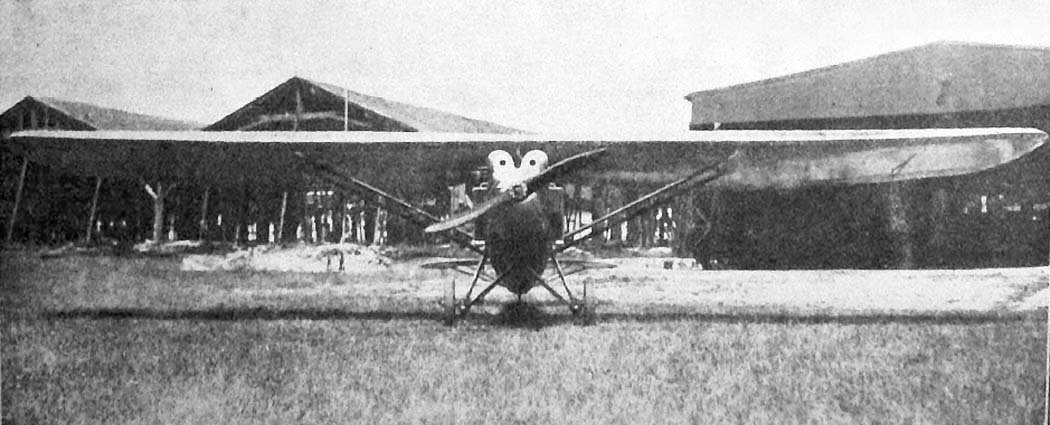

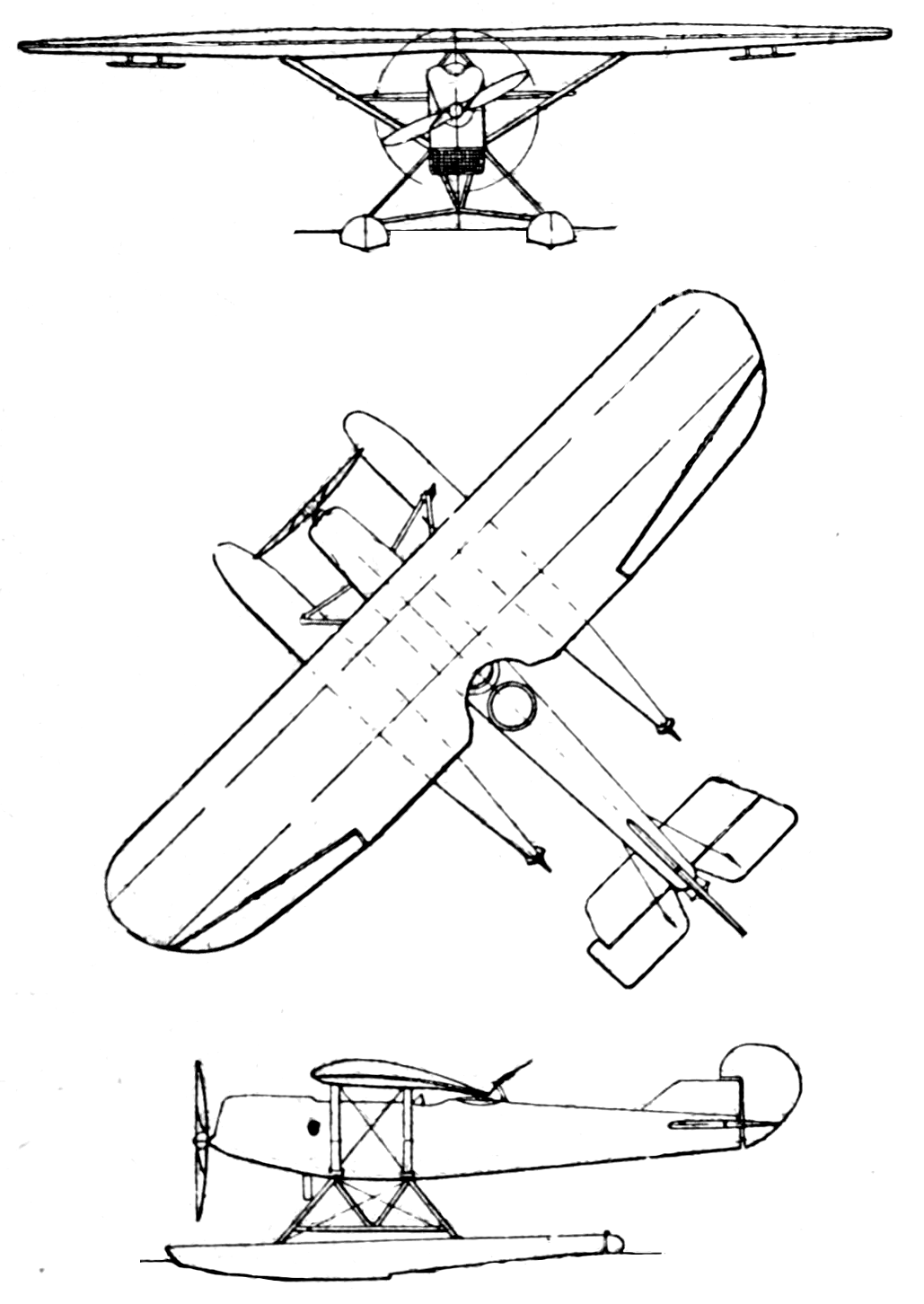

Image and diagram gallery of the Breda A.7 Reconnaissance Aircraft

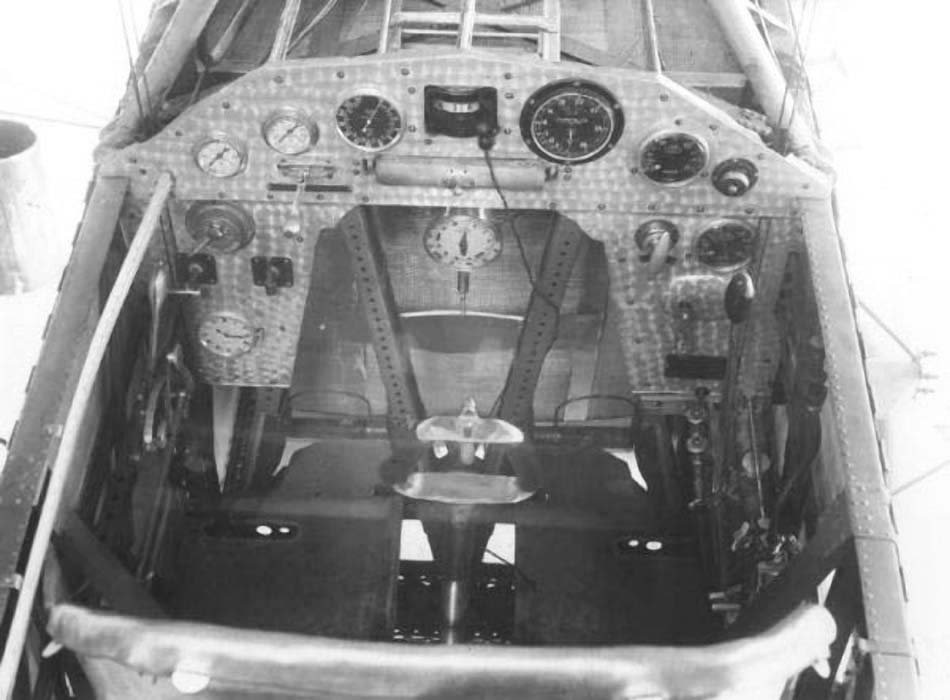

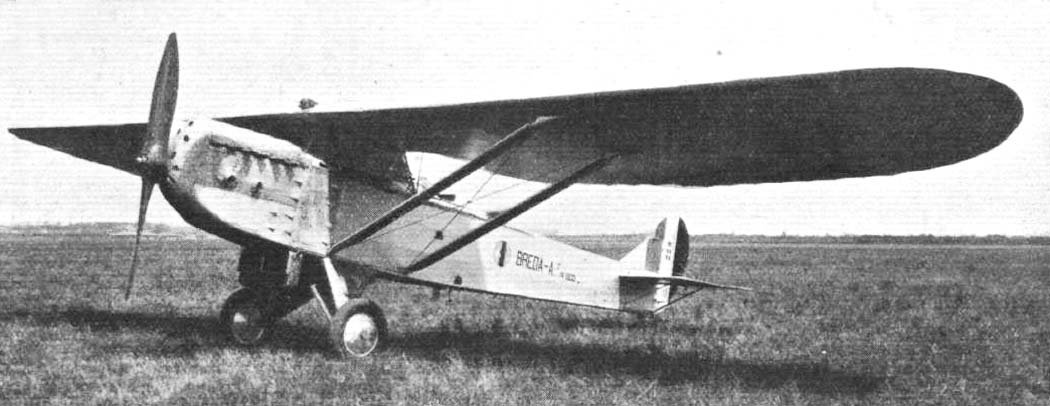

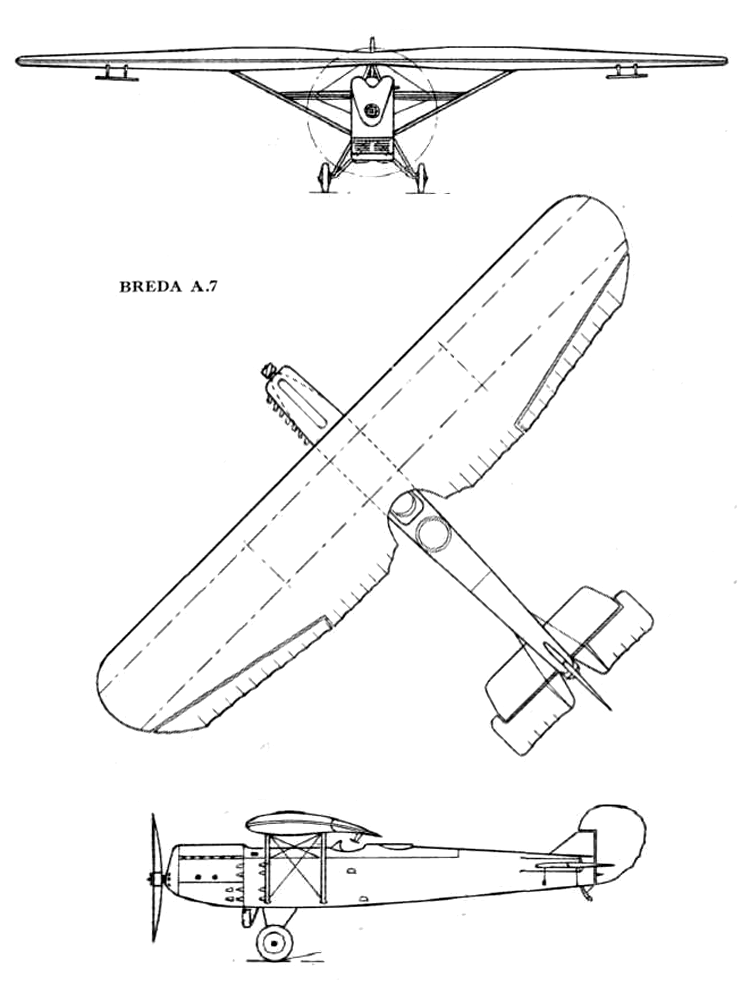

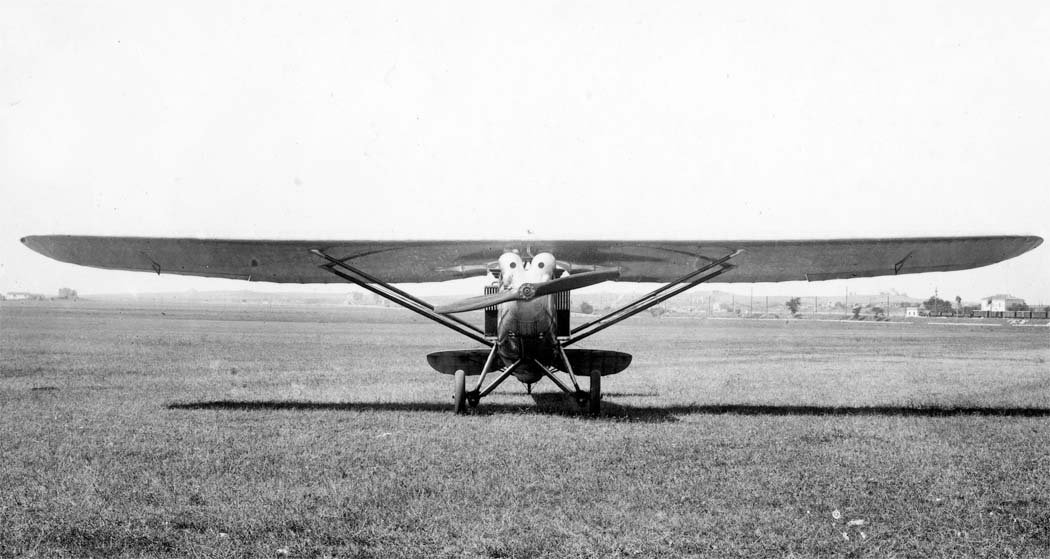

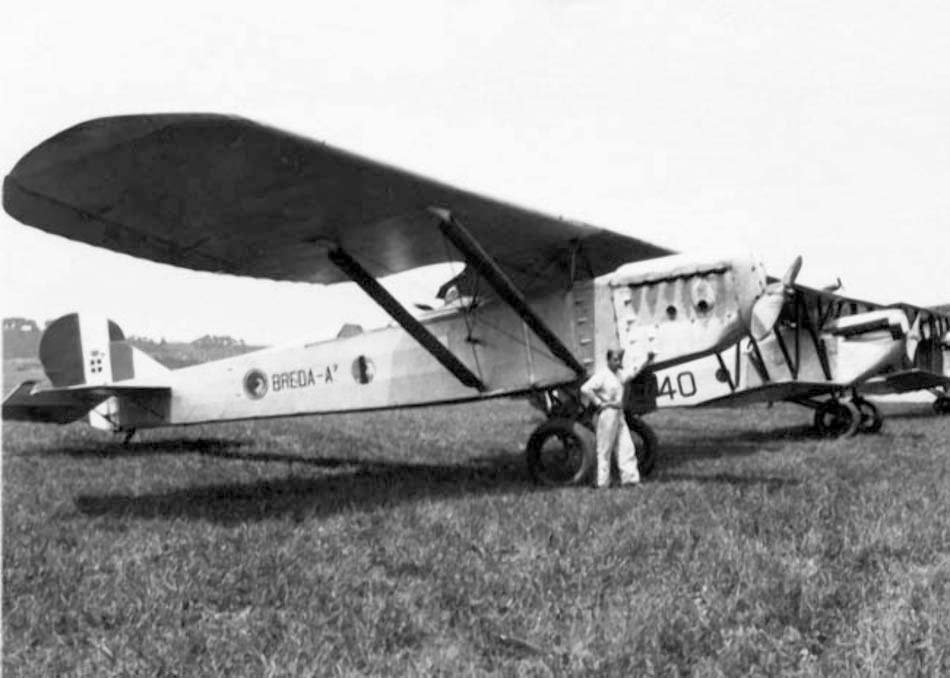

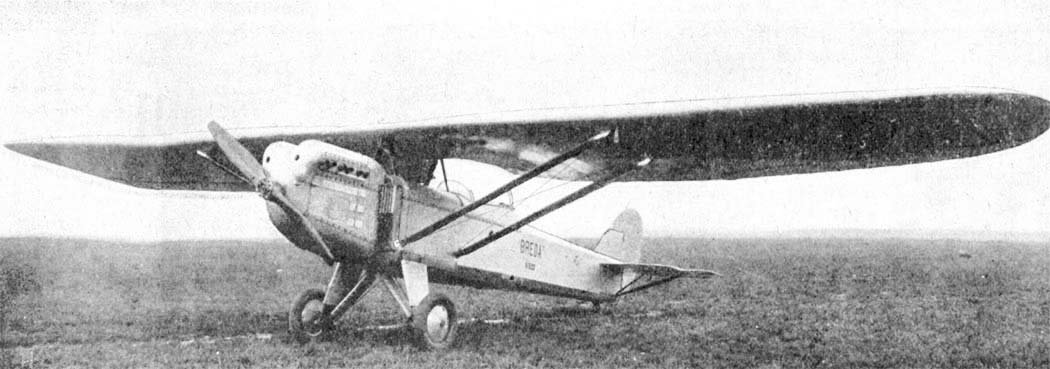

 A.7 |

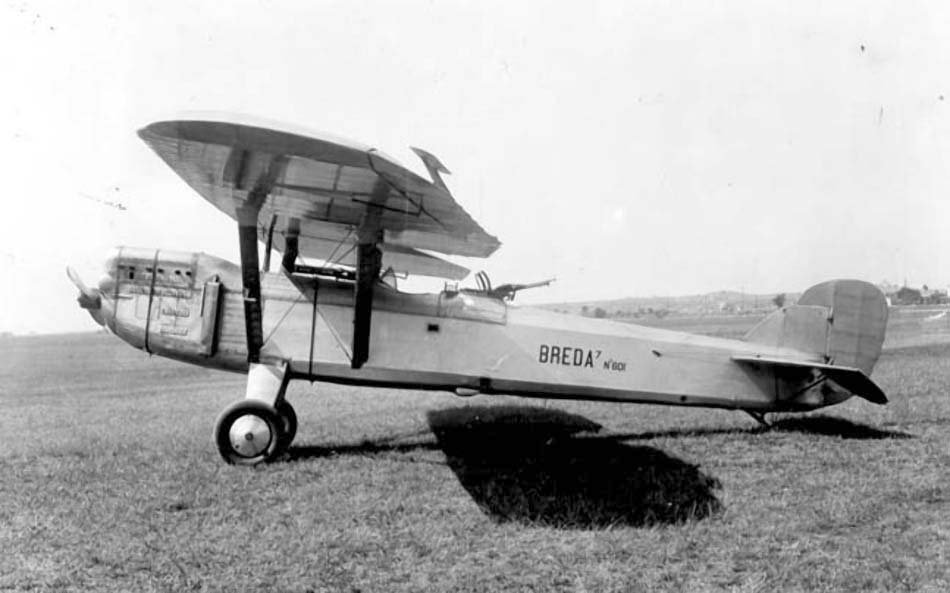

 A.7 |

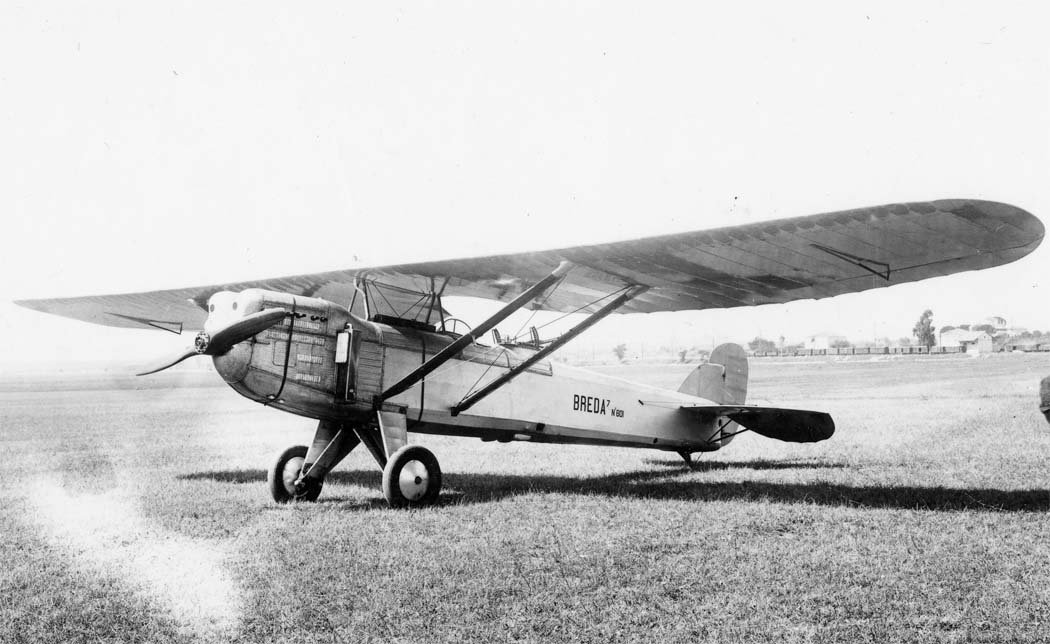

 A.7 |

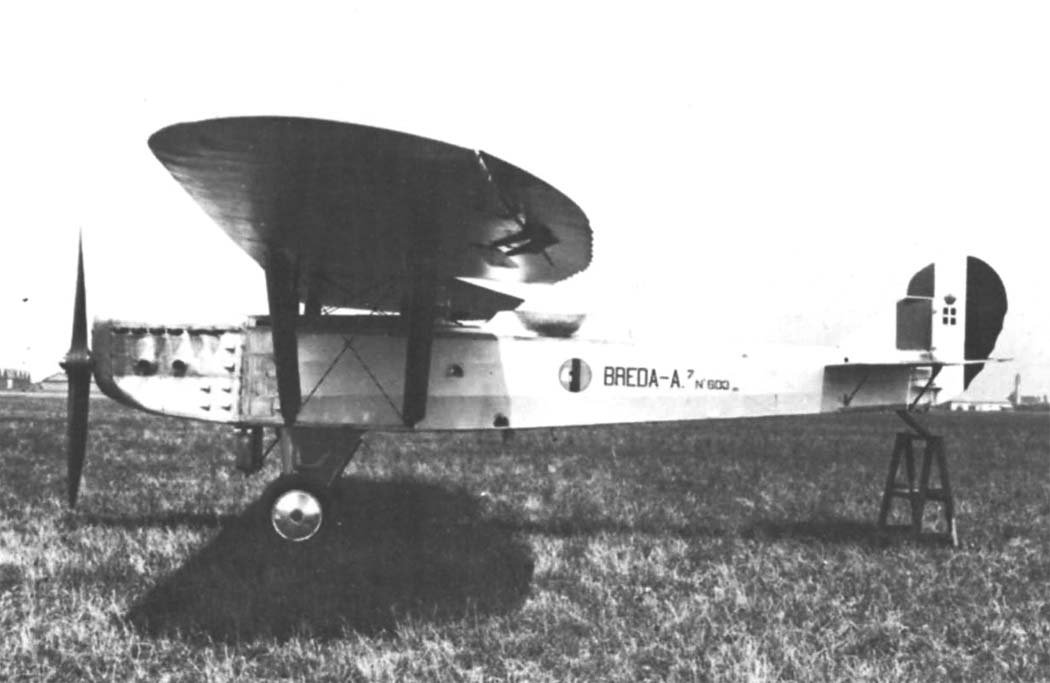

 A.7 |

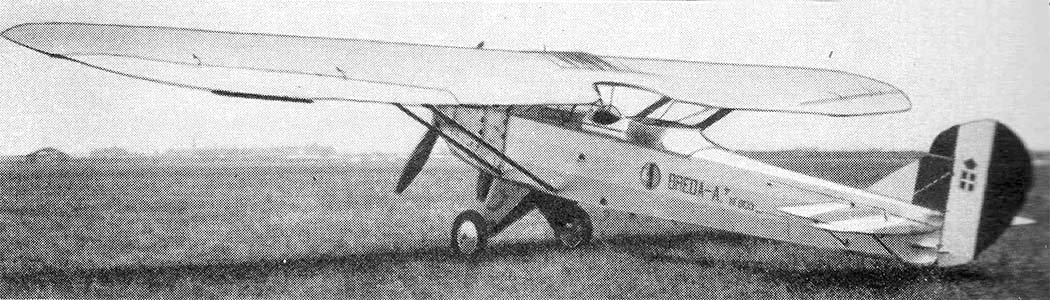

 A.7 |
 A.7 |
 A.7 |
 A.7. Photograph: Giorgio Apostolo |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
 A.7 |
