Seversky BT-8

The SEV-3 variant with conventional wheeled landing gear, which appeared in 1934, served as the prototype for the BT-8 trainer aircraft. This aircraft was entirely metal, featuring a cantilever monoplane wing and an enclosed two-seat cockpit. It radically differed from the outdated, slow biplanes then in use for pilot training.

Its 400 hp engine allowed it to reach a speed of almost 300 km/h. The landing gear was non-retractable and had fairings, but a “gear up/down” switch was provided in the cockpit for training purposes, simulating the functionality of the most modern combat aircraft.

Innovation and Technical Specifications

In 1935, Seversky’s new aircraft received first prize at a trainer aircraft competition in the USA. Following this recognition, the US Army Air Corps ordered 30 BT-8s. These aircraft were used for pilot training until 1939, playing a crucial role in modernizing air instruction.

Recognition and Operational Deployment

The sole drawback was the mismatch between the engine’s power and the considerable weight of the all-metal monoplane structure. This, combined with a relatively high wing loading, caused several accidents. These incidents were primarily due to stalls during flights performed by inexperienced pilots.

Challenges and Limitations

Technical Specifications

Modification	BT- 8
Wingspan, m	10. 97
Length, m	7. 40
Height, m	2.70
Wing area, m2	20.43
Empty weight	1 240
Maximum takeoff weight	1840
Engine type	1 Piston engine Pratt & Whitney R-985-11
Power, hp	1 х 400
Maximum speed, km/h	280
Cruising speed, km/h	190
Practical range, km	850
Service ceiling, m	4500
Crew	2

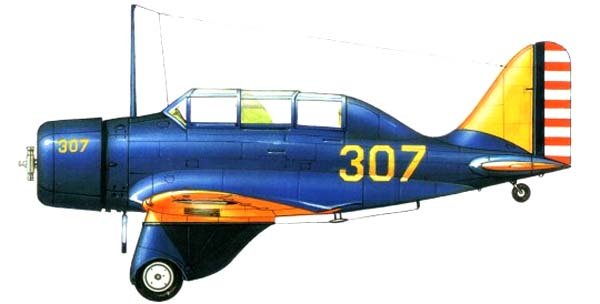

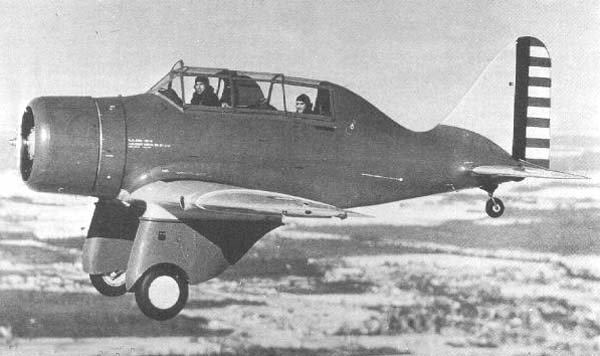

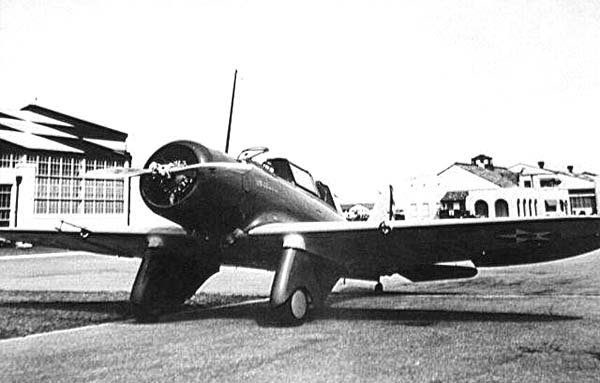

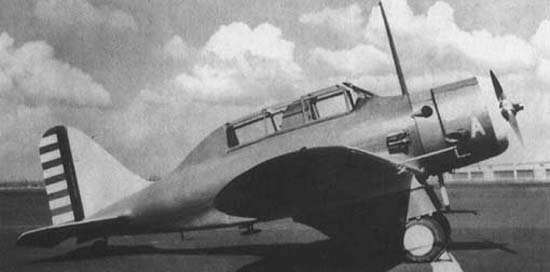

Image and diagram gallery of the Seversky BT-8

BT-8	BT-8
BT-8	BT-8
BT-8
