Development and Design
In 1929, the light transport flying boat Loening Commuter was completed, powered by a 300 hp Wright J-6 engine. The aircraft was similar to the Sikorsky S-39, with the exception of its configuration: the Sikorsky flying boat was a monoplane, while the Commuter was a biplane.
Corporate Merger and Redesignation
Following the merger of Keystone and Loening firms in 1931, the aircraft’s designation changed to Keystone-Loening K-84 Commuter. This redesignation reflected the combined corporate identity of the newly formed entity.
Production and Variants
A total of 31 units of the flying boat were produced until 1932. One of these, specifically NC374V, underwent modification in 1930 into the K-84W variant, equipped with a 300 hp Pratt & Whitney Wasp Junior engine.
Technical Specifications
| Modification | Commuter |
| Wingspan, m | 12.19 |
| Aircraft length, m | 9.88 |
| Empty weight | 555 |
| Engine type | 1 Piston engine Wright J-6 |
| Power, hp | 1 x 300 |
| Maximum speed, km/h | 185 |
| Cruising speed, km/h | 145 |
| Practical range, km | 815 |
| Practical ceiling, m | 3700 |
| Crew, crew members | 1 |
| Payload | 4 passengers |

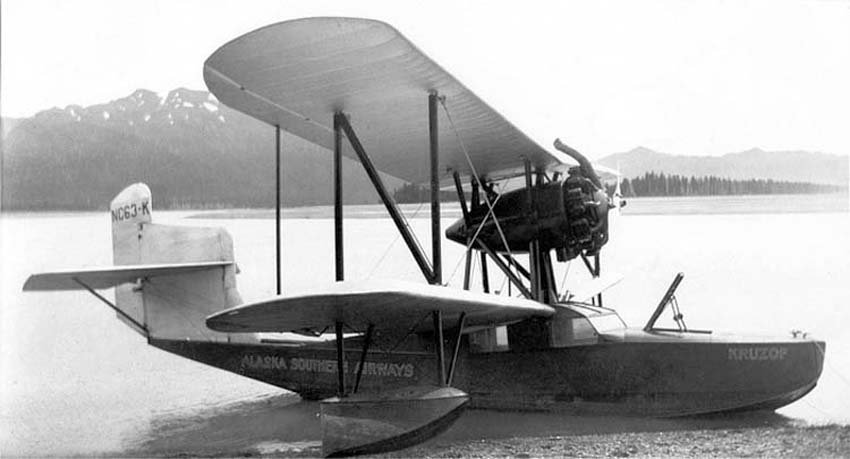

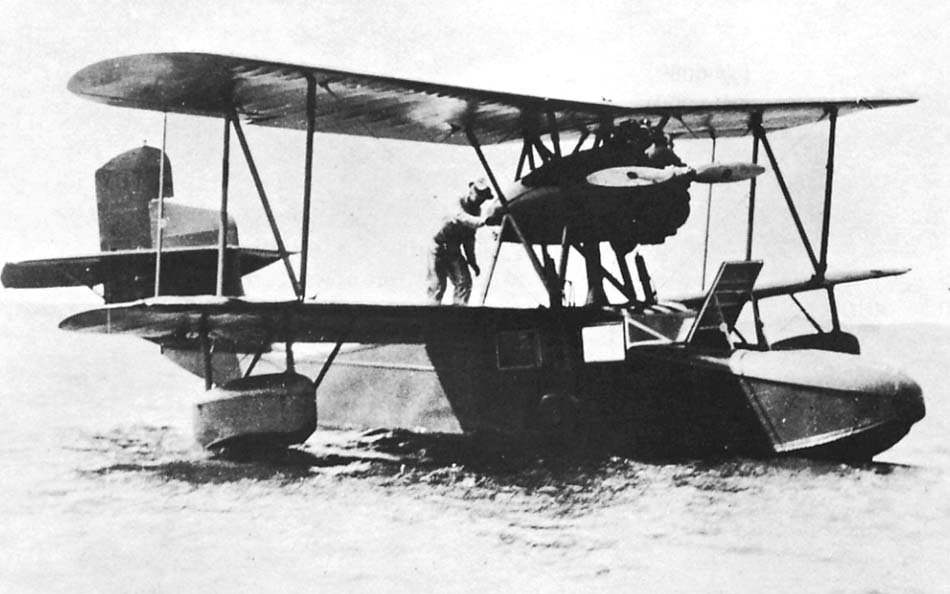

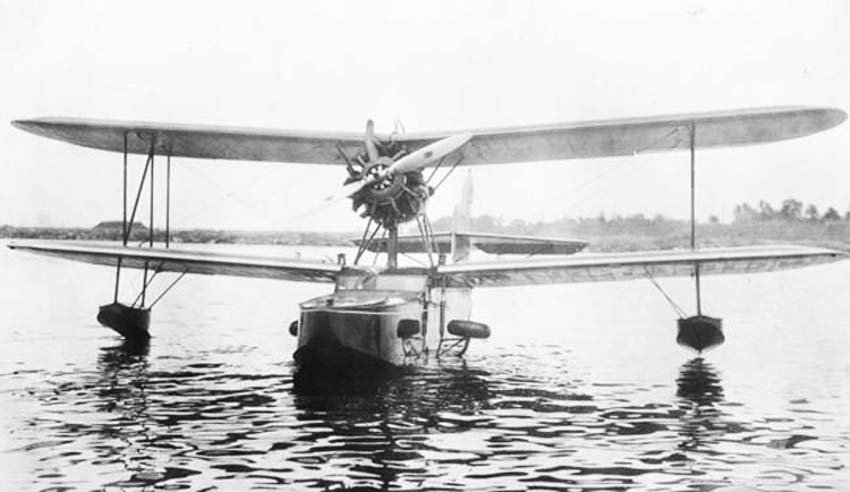

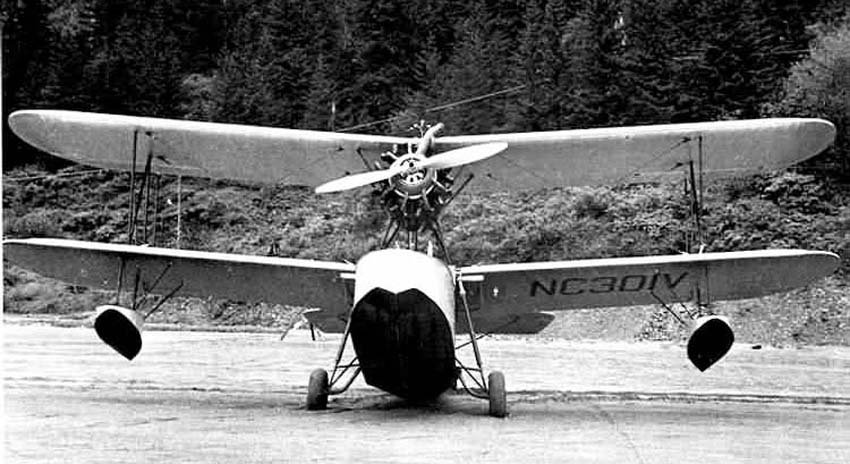

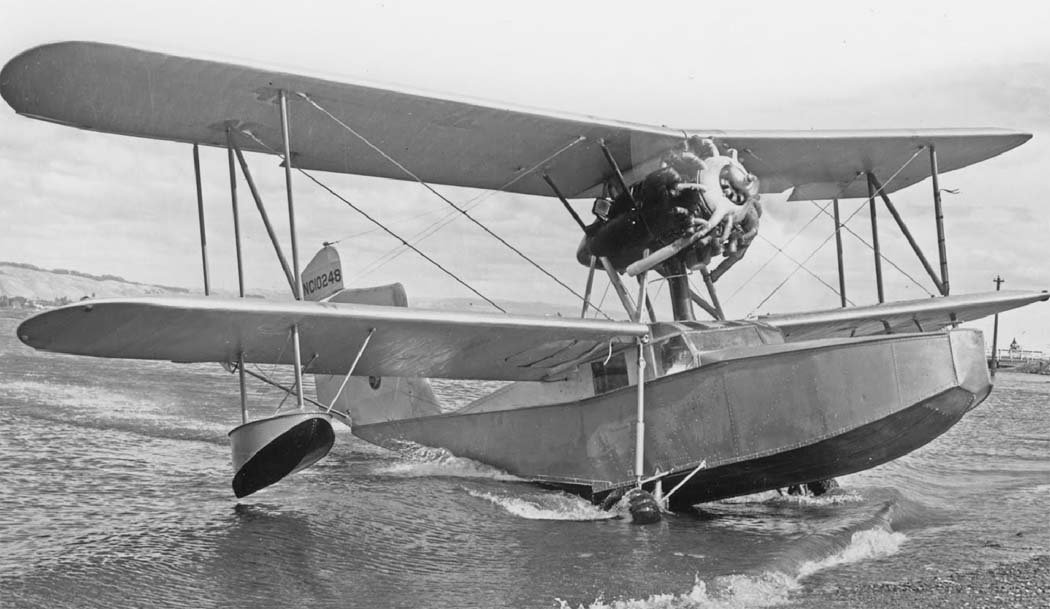

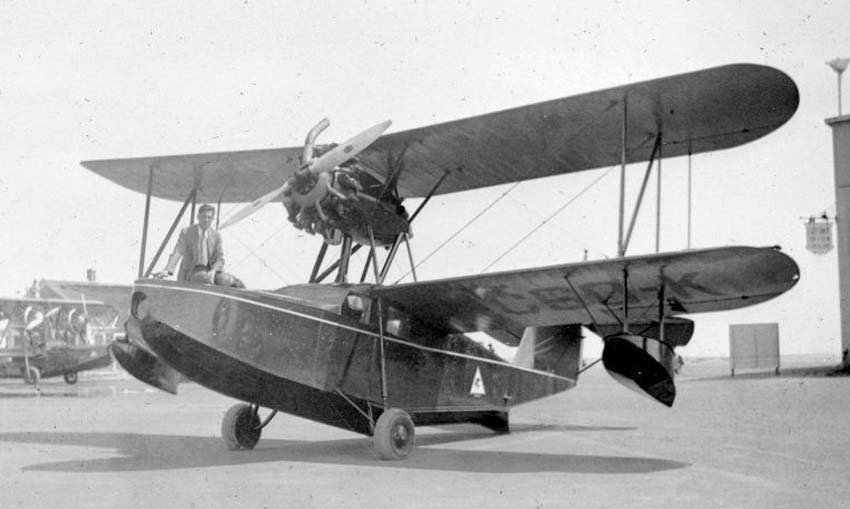

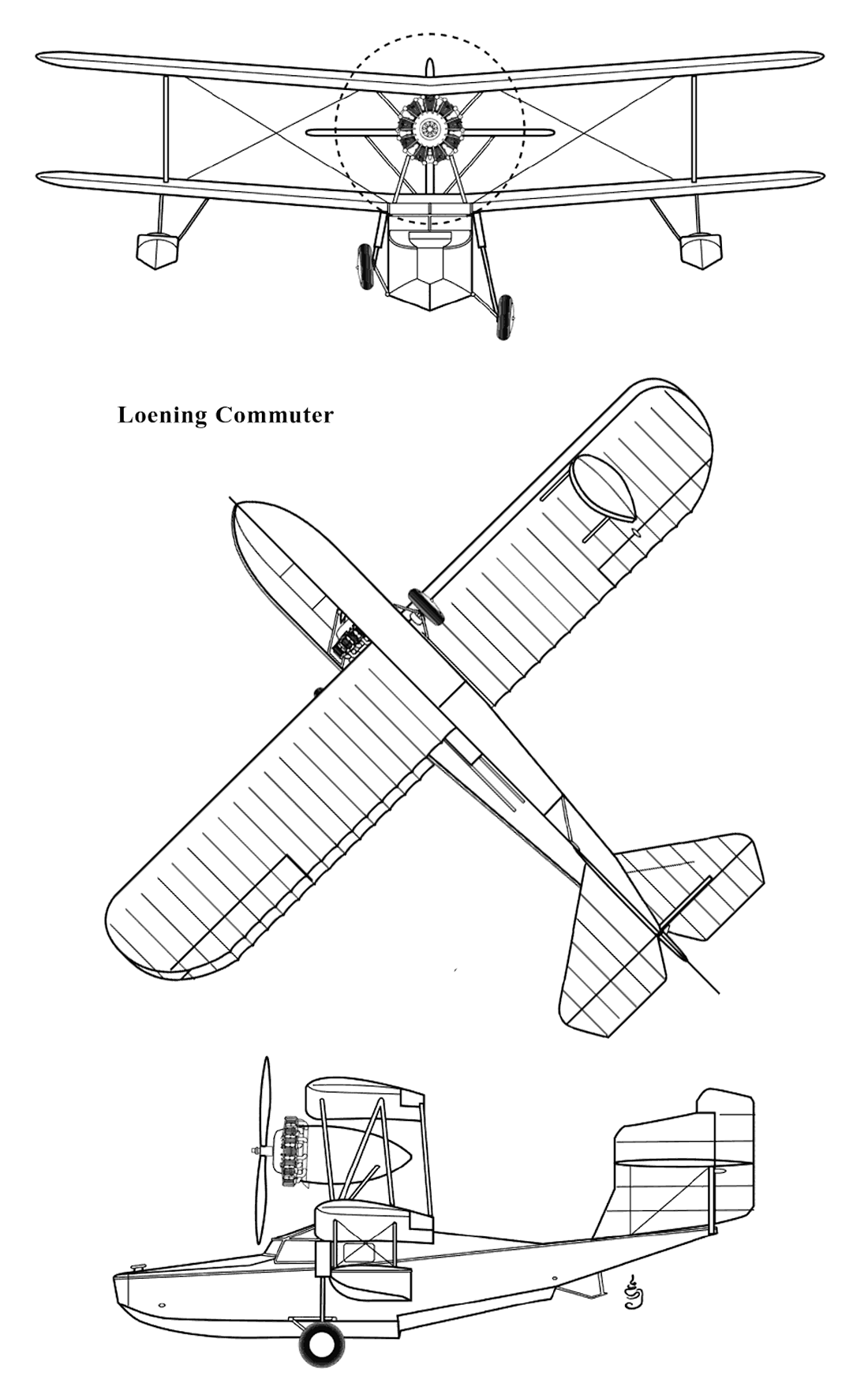

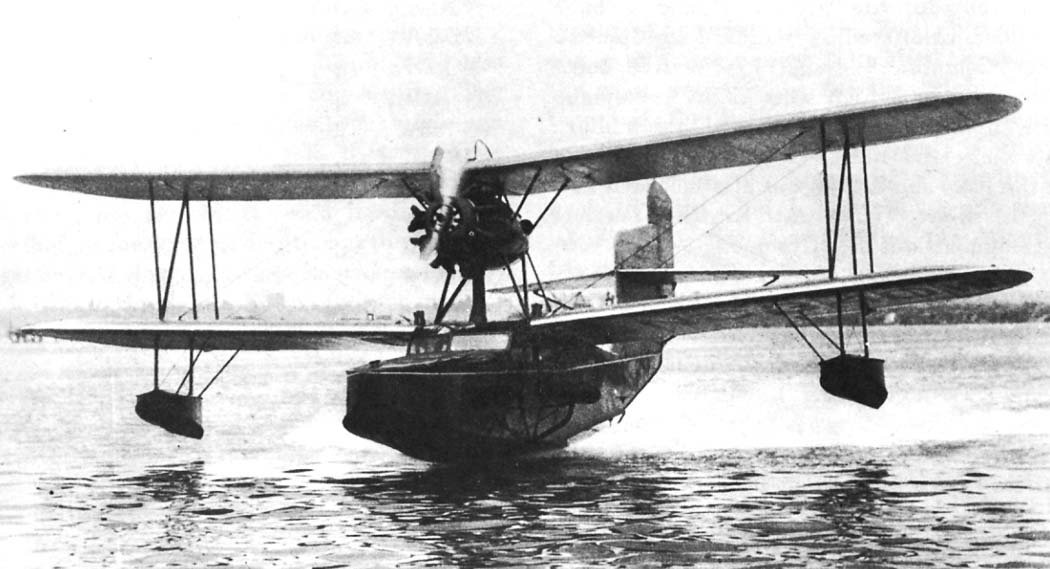

Image gallery of the Loening Commuter
