The CoAX 600 is a light helicopter developed by the German company EDM Aerotec GmbH. This aircraft represents a further evolution of the EDM Aerotec CoAX 2 D/2R models, building upon their innovative design legacy.
Innovation and Power
The main innovation of this model is the increase in its maximum take-off weight, reaching 600 kilograms. To support this enhanced capability, a more powerful propulsion system was chosen: the ULPower UL390iS engine, delivering 160 hp (118 kW) of power.
Efficiency and Flight Performance
The new engine allows for a continuous power output of 145 hp with a fuel consumption of just 19 liters per hour, making it a more economical option than the popular Robinson R22. With a 70-liter fuel tank, the CoAX 600 can fly for up to three and a half hours at a cruising speed of 120-150 km/h.
In 2023, the EDM Aerotec CoAX 600 helicopter received its airworthiness certificate from DULV, confirming its safety and reliability for operation.
Technical Specifications
| Modification | CoAX 600 |
| Main rotor diameter, m | 6.50 |
| Length, m | 7.20 |
| Height, m | 2.80 |
| Empty weight | 340 |
| Maximum takeoff weight | 600 |
| Fuel, l | 70 |
| Engine type | 1 Piston engine ULPower UL390iS |
| Power, hp | 1 x 160 |
| Maximum speed, km/h | 170 |
| Cruising speed, km/h | 120-150 |
| Flight endurance, h.min | 3.30 |
| Service ceiling, m | 3658 |
| Crew | 2 |

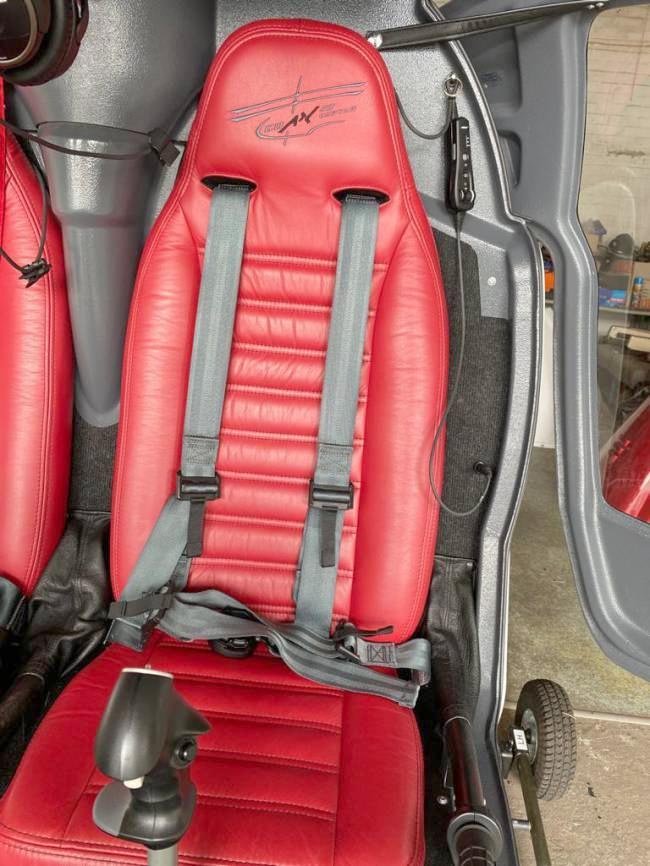

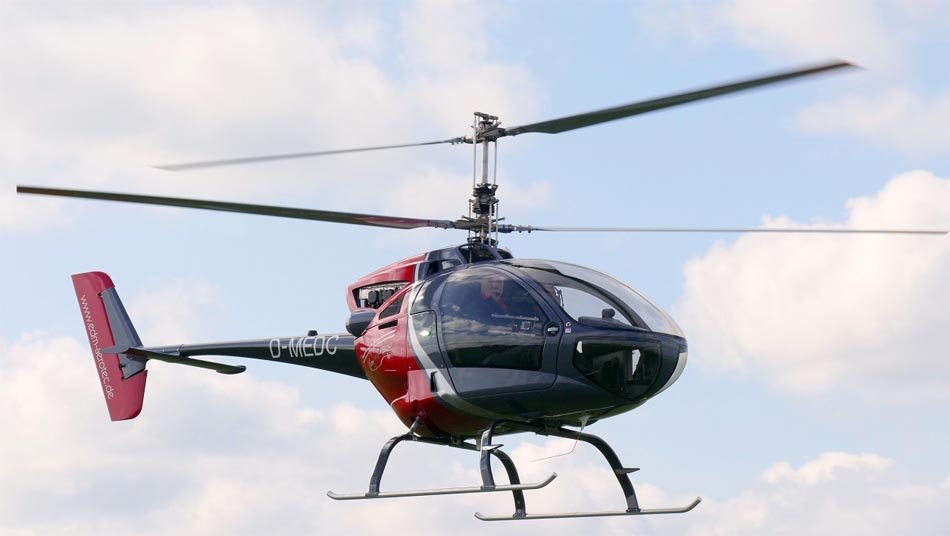

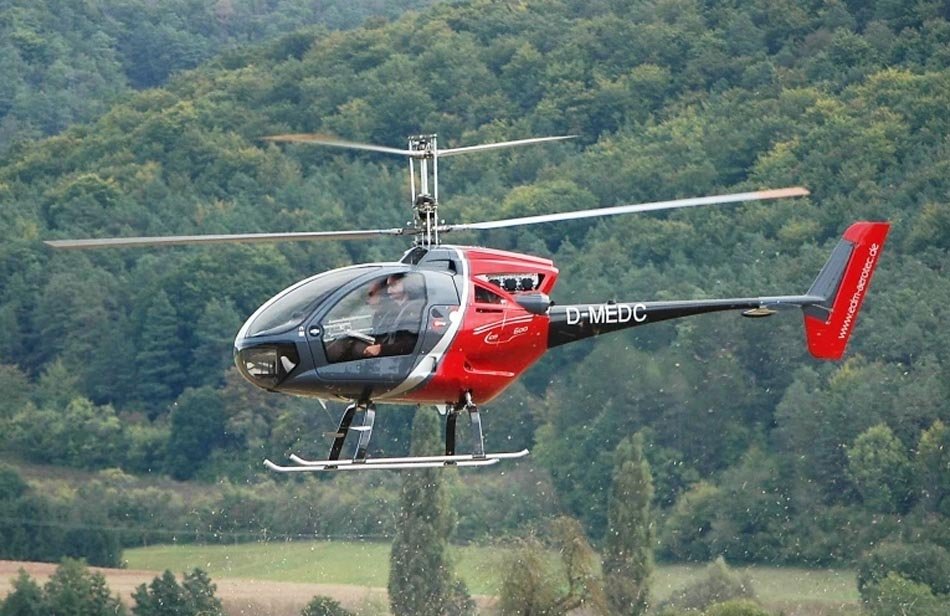

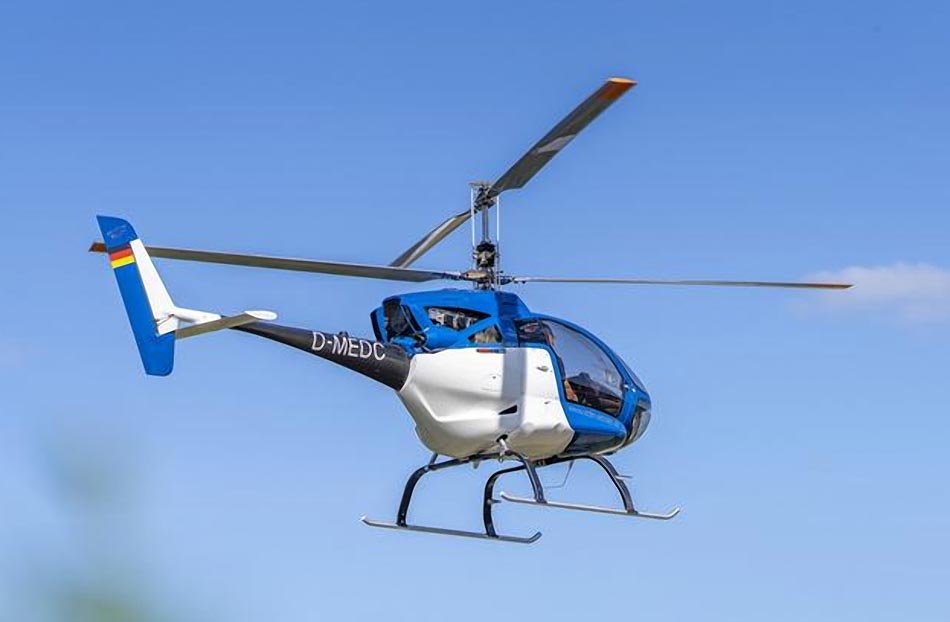

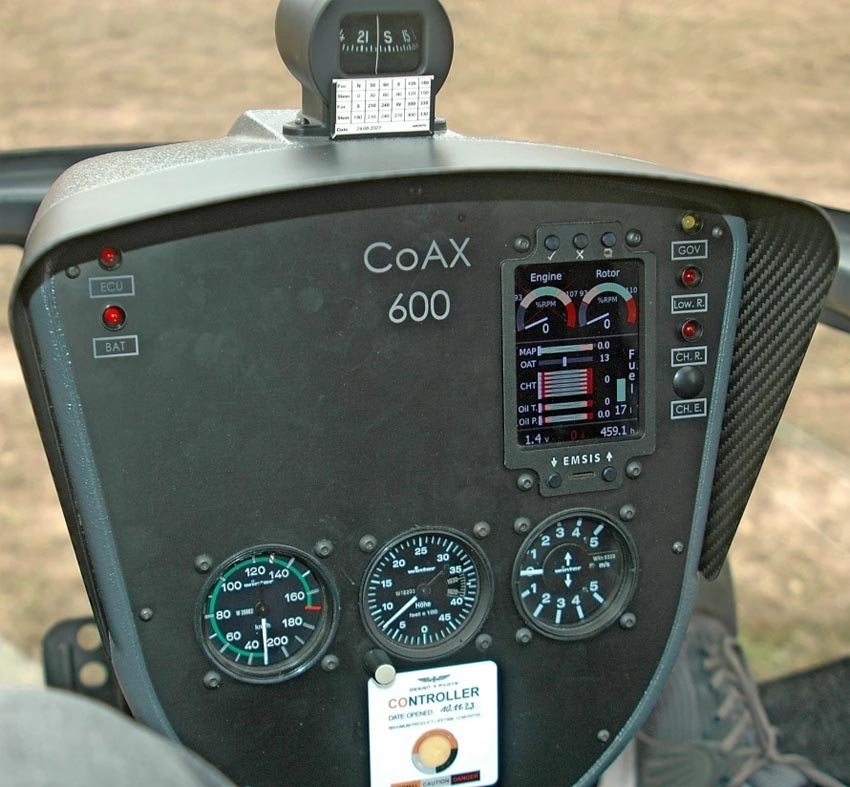

Image gallery of the CoAX 600
